SWISSTEN CARICABATTERIE GaN 100W POWER DELIVERY QUICK CHARGE 4 PORTE: 2x USB-C PD 100W 1x USB-C PD 20W 1x USB-A QC 30W 22071610

SCHEDA TECNICA (IT)

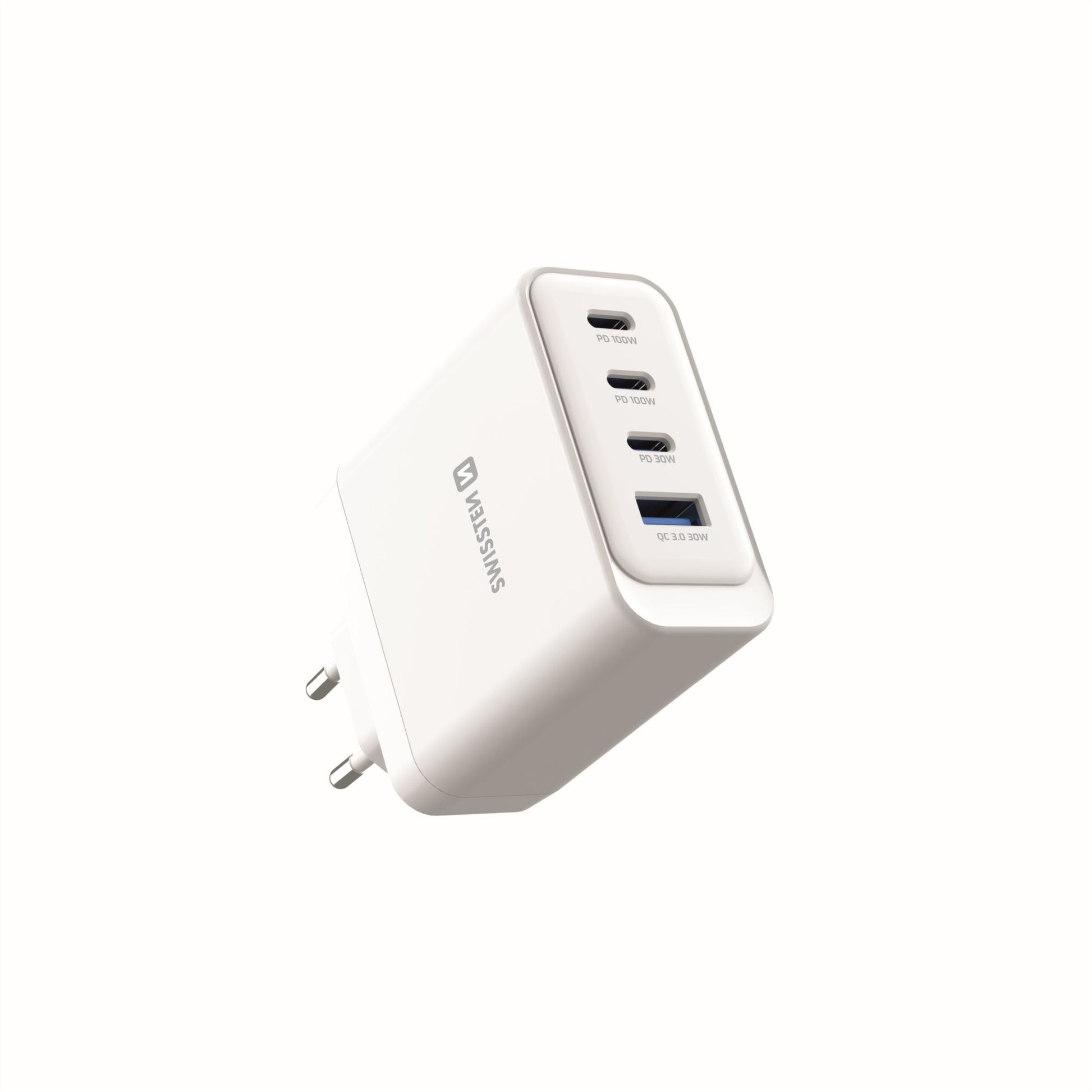

Swissten CORE GaN 100W (3x USB-C + 1x USB-A) – Caricatore da rete ad alte prestazioni per smartphone, tablet e laptop.
Tecnologia GaN per maggiore efficienza, minore surriscaldamento e dimensioni compatte.
Potenza fino a 100W sulla porta USB-C principale, ideale anche per notebook.
Tre porte USB-C Power Delivery e una porta USB-A Quick Charge 30W per ricaricare fino a 4 dispositivi insieme.
Supporta PPS e AVS con gestione intelligente della potenza per una ricarica rapida e sicura.

SPECIFICHE TECNICHE (IT)

• EAN: 8595217494695
• Product Code: 22071610

Generali:

• Tipo: caricatore da rete
• Tecnologia: GaN
• Porte: 3x USB-C + 1x USB-A
• Efficienza di ricarica: 91%
• Dimensioni: 69 × 50 × 32 mm
• Peso: 207 g

Ingresso:

• Input: 100–240V AC, 2.2A, 50/60Hz

Uscite:

• USB-C1 / USB-C2 (PD 3.0): 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, max 100W
• USB-C3 (PD 3.0): 5V⎓3A, 9V⎓3A, 12V⎓2.5A, 15V⎓2A, 20V⎓1.5A, max 30W
• USB-A (QC 3.0): 5V⎓3A, 9V⎓2A, 12V⎓1.5A, 20V⎓1.5A, max 30W

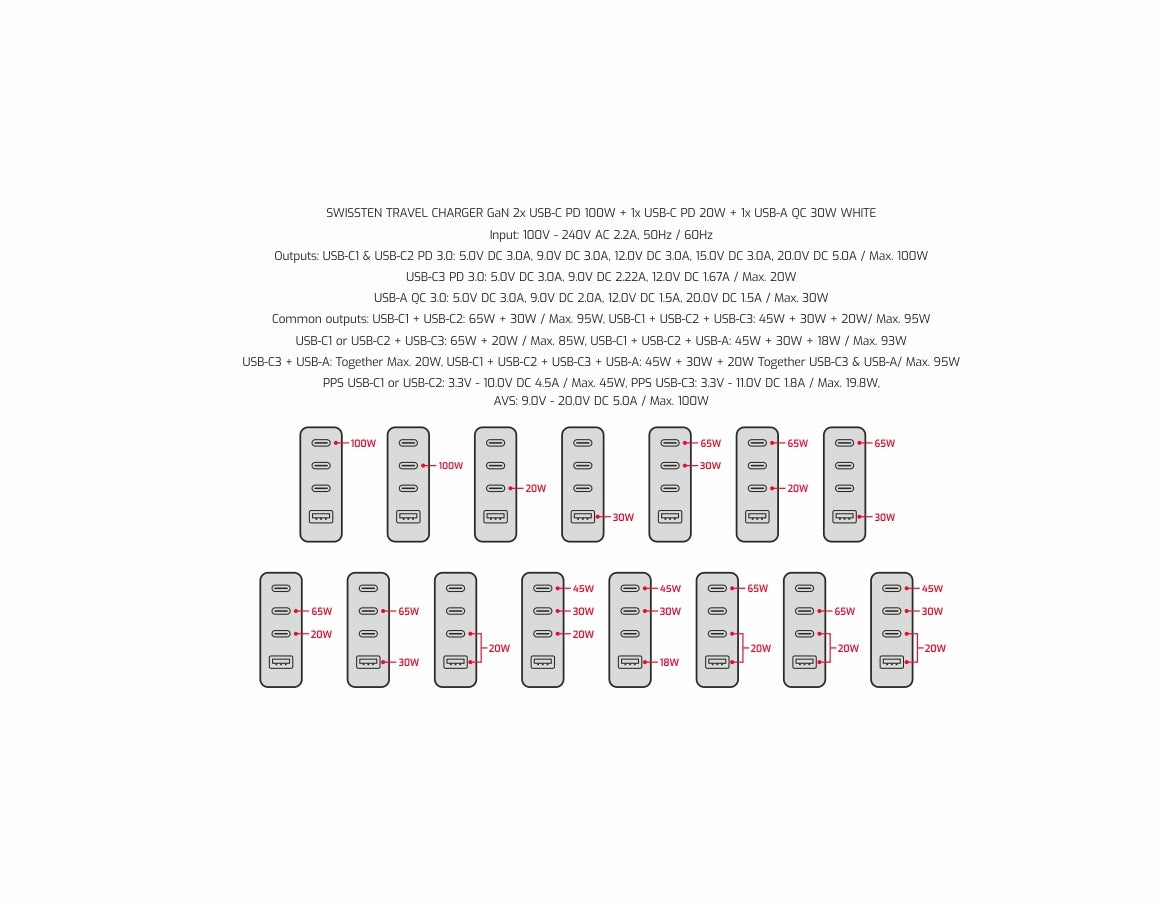

Output combinati:

• USB-C1 + USB-C2: 65W + 30W / max 95W
• USB-C1 + USB-C2 + USB-C3: 45W + 30W + 20W / max 95W
• USB-C1 o USB-C2 + USB-C3: 65W + 30W / max 95W
• USB-C1 + USB-C2 + USB-A: 45W + 30W + 18W / max 93W
• USB-C3 + USB-A: max 20W condivisi
• USB-C1 + USB-C2 + (USB-C3 + USB-A): 45W + 30W + 20W / max 95W

Protocolli e sicurezza:

• PPS USB-C1 o USB-C2: 3.3V–10V⎓4.5A, max 45W
• PPS USB-C3: 3.3V–10V⎓3A, max 30W
• AVS USB-C1: 9V–20V⎓5A, max 100W
• Protezioni contro sovracorrente, sovratensione, surriscaldamento, sovraccarico, sottotensione e cortocircuito.

ENGLISH VERSION

Swissten CORE GaN 100W (3x USB-C + 1x USB-A) – High-performance wall charger for smartphones, tablets and laptops.
GaN technology ensures higher efficiency, lower heat and compact size.
Up to 100W output on the main USB-C port, suitable also for laptops.
Three USB-C Power Delivery ports and one USB-A Quick Charge 30W port allow charging up to 4 devices at the same time.
Supports PPS and AVS with intelligent power distribution for fast and safe charging.

TECHNICAL SPECIFICATIONS (EN)

• EAN: 8595217494695
• Product Code: 22071610

General:

• Type: wall charger
• Technology: GaN
• Ports: 3x USB-C + 1x USB-A
• Charging efficiency: 91%
• Dimensions: 69 × 50 × 32 mm
• Weight: 207 g

Input:

• Input: 100–240V AC, 2.2A, 50/60Hz

Outputs:

• USB-C1 / USB-C2 (PD 3.0): 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, max 100W
• USB-C3 (PD 3.0): 5V⎓3A, 9V⎓3A, 12V⎓2.5A, 15V⎓2A, 20V⎓1.5A, max 30W
• USB-A (QC 3.0): 5V⎓3A, 9V⎓2A, 12V⎓1.5A, 20V⎓1.5A, max 30W

Combined Output:

• USB-C1 + USB-C2: 65W + 30W / max 95W
• USB-C1 + USB-C2 + USB-C3: 45W + 30W + 20W / max 95W
• USB-C1 or USB-C2 + USB-C3: 65W + 30W / max 95W
• USB-C1 + USB-C2 + USB-A: 45W + 30W + 18W / max 93W
• USB-C3 + USB-A: max 20W shared
• USB-C1 + USB-C2 + (USB-C3 + USB-A): 45W + 30W + 20W / max 95W

Protocols & Safety:

• PPS USB-C1 or USB-C2: 3.3V–10V⎓4.5A, max 45W
• PPS USB-C3: 3.3V–10V⎓3A, max 30W
• AVS USB-C1: 9V–20V⎓5A, max 100W
• Protection against overcurrent, overvoltage, overheating, overload, undervoltage and short circuit.
